    Automatic Sorting Folder


    Product overview

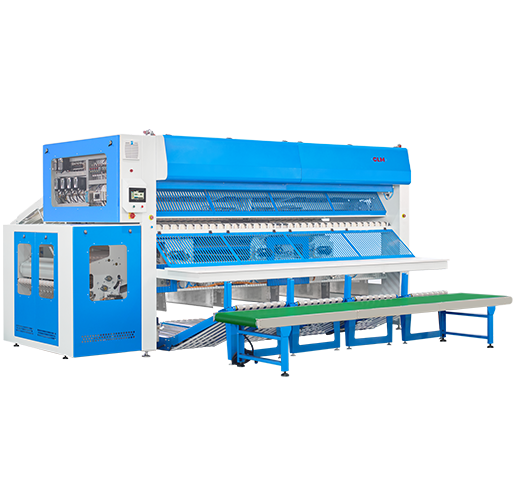

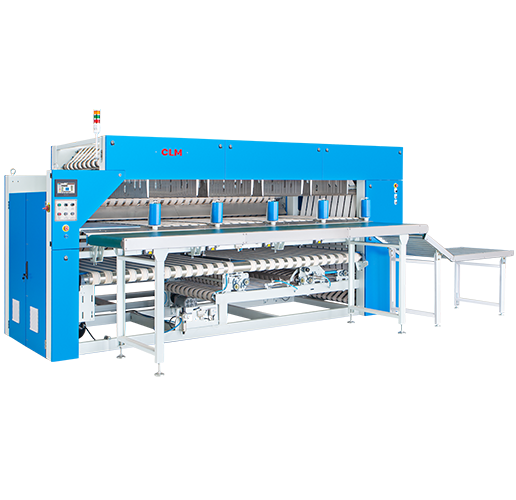

    CLM automatic sorting folder has 3 crossfold,crossfold maximum folding size is 3600mm,even large size sheets can be folded well.3 crossfold all finished by folding knife to ensure the flatness and quality


    Application industry


    Hotel Laundry
    Hospital Laundry

                      Product Video



























































    Technical Characteristics






    • Patent
      The first 5 nationl patents in China
    • High SpeedHigh Speed
      Maximum Speed can reach 60m/min
    • Running Smoothly.Running smoothly
      the probability of jamed linen is extremely low, even if it is blocked, the blocked sheets can be taken out within 2 minutes
    • Good Stability
      the whole machine rigid, the accuracy of the transmission component is very high, all parts are used high quality imported parts
    • Save Labor Cost
      Automaticlly sorting different size sheets and stacking them on different stackers to reduce a lot of labor work
    • PLC
      The precise folding requires precise control. The CLM folder uses the Mitsubishi PLC control system,  7 -inch touch screen, and stored more than 20 folding programs and 100 customer information. Equipped with Internet functions such as remote fault diagnosis, failure exclusion, and program upgrade
    • Software Communication
      CLM Folder can communicate with feeder and ironer to realize software and program communication
    • Automatic Sorting
      CLM automatic folder can maximum have 5 stackers to sort 5 different sizes sheets on these stackers, even with high speed working speed, only need one person to finish the packing work
    • Conveyor
      CLM automatic folder is equipped with conveyor at behind,this conveyor can transfer the stacking sheets to the packing machine, which increase the working efficiency
    • Air cylinder Design
      According to adjust the air cylinder action time and position to control the stacking accuracy
    • Longfold
      CLM high speed folder has 2 longfold and 3 crossfold, the maximum folding size is 3300mm. Longfold is finished by air blowing, the air blowing time can be set based on different material and thickness linen to ensure the perfect folding quality
    • Crossfold
      CLM high speed folder has 3 crossfold,crossfold maximum folding size is 3600mm,even large size sheets can be folded well.3 crossfold all finished by folding knife to ensure the flatness and quality
    • MechanicalFolding Knife
      Special folding knife design can finish two folds by one action, not only prevent static electricity, but also achieve high speed folding efficiency
    • Air Cylinder Design
      The third crossfold section set two air cylinders on both sides of the axis, if any sheet blocked here, the two axis will automatic separated,operator can easily take out the blocked sheets
    • Open Structure Design
      The 4th and 5th folds are open structure design, conveniently to see and deal with any problem
    • Frame Structure
      The frame structure of the CLM high speed folder is welded as a whole, and each long axis is precisely processed
    • High Efficiency
      Maximum Folding Speed can reach 60m/min, maximum capacity can reach 1200pcs bed sheets
    • Quality Ensurance
      All electrical components,pneumatic components,bearing,motor,etc all use Japanese, European famous brands





















    High Speed
    CLM洗衣籠密封性能性好，有效保證不漏水、運行噪音低
    Flat Ironing
    裝料口設置在地面70CM高的距離，實現輕松裝料，人性化設計。
    Running Smoothly
    所有電器、氣動元件均采用德國、日本品牌。
    Energy Efficiency
    洗衣籠內筒采用4mm厚度不銹鋼，比歐洲其他品牌材料更厚更堅固。
















    Technical Parameter
